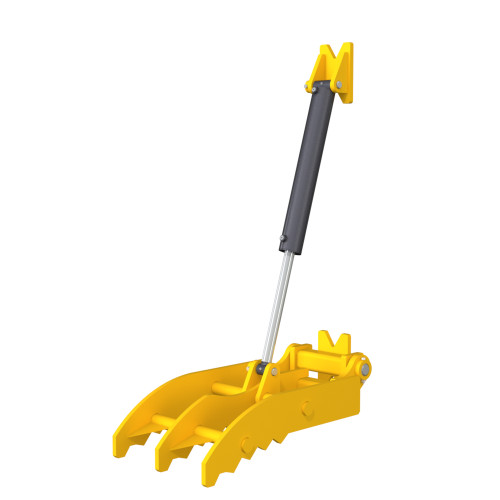

This heavy-duty thumb makes it easier to pick, hold and move all types of material such as rocks, concrete, branches, and debris, increasing handling performance and versatility.
- Fully gusseted for exceptional strength
- Fits most machines that weigh between 28,000 and 45,000 lbs
- Heavy-duty frame
- 3 fingers made of 1" steel plate with serrated edges
- Double welded for added reinforcement
- 1-year warranty
Mounting | Weld-On |
---|---|
Operation | Hydraulic |
Width | 26" |
Length | 50" |
Tine Thickness | 1" |
Tine Material | Mild Steel |
Main Pin Diameter | 2 1/2" |
Stowed-Position Height | 70 1/2" |
Max. Extension Angle | 120 Degrees |
Min. Operating Weight | 28,000lbs |
Max. Operating Weight | 45,000lbs |
Net Weight | 640lbs |
Excavator Weight Class | 22,500lbs to 40,000lbs |
