Hydraulic Weld-On Thumb 32"x62"

Built-Tough

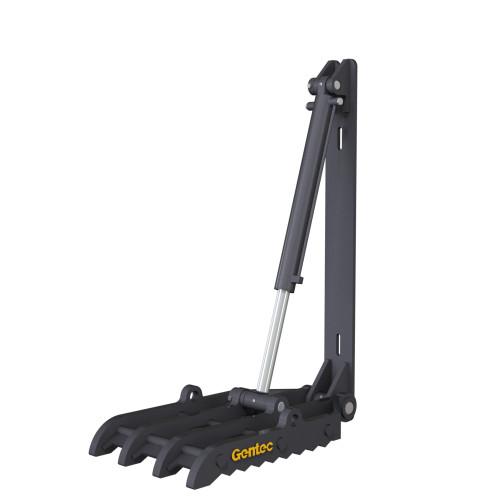

Introducing the HT3262 Hydraulic Weld-On Thumb by Gentec – built tough for large contractors. This 32" wide and 62" long thumb is designed for machines between 55,000lbs and 75,000lbs, and weighs 1332lbs. Constructed with four 2" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT3262 thumb is designed for increased strength and long-lasting durability. The double-sealed welded cylinder further enhances reliability, and spherical bushings at the top of the cylinder protect it from side loading. The cylinder comes with a hydraulic cushion at the top of the stroke to protect it during retraction and has both hydraulic ports located at the top so your hydraulic hoses are safe and out of the way. Additionally, both cylinder pins and the thumb main pin are greaseable for easy maintenance. The main pin and main bushings are hardened for added durability.

Superior Geometry

Experience superior geometry with the HT3262. The thumb boasts a maximum extension angle of 134 degrees. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 28" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 83 3/8”, and the hydraulic cylinder is included. The port size on the cylinder is larger to allow for faster cycling.

Maximize your investment

Invest in the HT3262 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT3262 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features:

• 32” wide, 62” long hydraulic thumb
• Ideal for machines between 55,000lbs and 75,000lbs
• Four 2” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
• Double-sealed welded cylinder with spherical bushings for increased reliability
• Hydraulic cushion at the top of the stroke for cylinder protection
• Both cylinder ports located at top of cylinder to prevent hose damage
• Greaseable pins and hardened main pin and main bushings for easy maintenance
• 134-degree maximum extension angle
• Minimized stowed dimensions for optimal digging performance
• 83 3/8” backplate
• Hydraulic cylinder included with larger port size for faster cycling
• 1-year warranty
• Replacement parts available
